How to Wire Heat Pump Thermostat? (Expert Tips)

When it comes to enhancing the efficiency and comfort of your home, a properly wired heat pump thermostat plays a pivotal role. This crucial device ensures your heat pump operates at its best, maintaining the desired temperature while keeping energy consumption under control. However, wiring a heat pump thermostat can seem complex if you’re unfamiliar with the process. Here’s what you’ll learn in this guide:

• The key components of heat pump thermostat wiring
• Step-by-step instructions for safe wiring
• Expert tips to improve efficiency and avoid common mistakes

Let’s explore everything you need to know to properly wire your thermostat and maximize the performance of your heat pump.

⭐️ Understanding Heat Pump Thermostat Wiring

Wiring a heat pump thermostat requires understanding its purpose and how it interacts with your heat pump system. A thermostat serves as the brain of your heating and cooling system, managing the input and output to regulate indoor temperature efficiently.

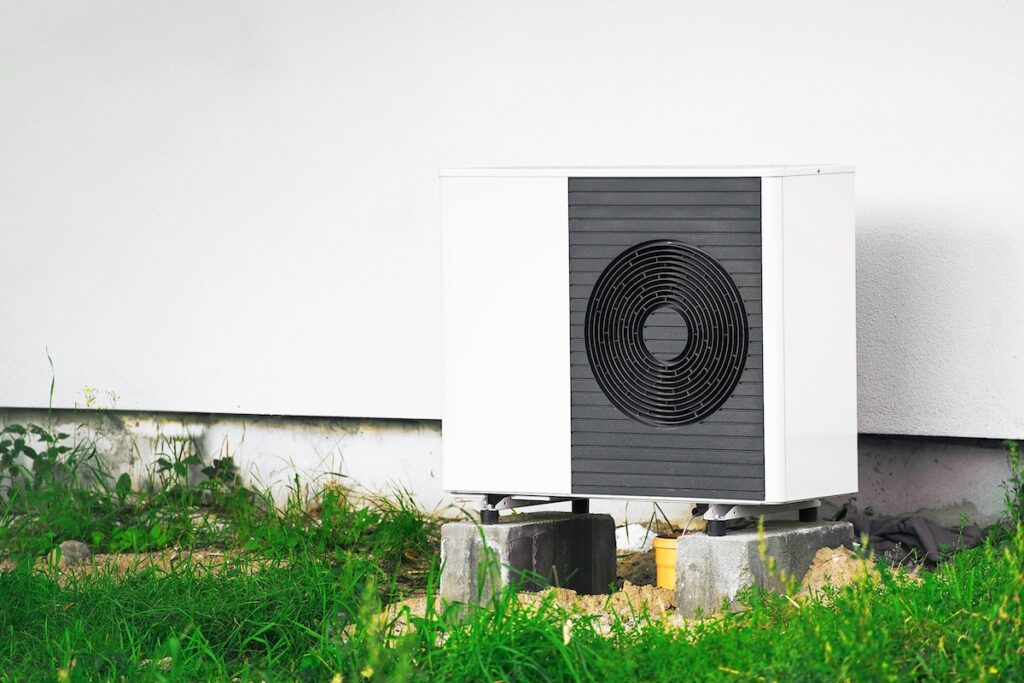

How the Heat Pump Functions

Before we address the process of wiring, it’s important to understand a heat pump’s fundamental components and operation. A heat pump transfers heat from one location to another using a refrigeration cycle. It can pull cold air from the atmosphere, even when outside temperatures are low, and transfer heat indoors during winter. Conversely, it removes warm air during summer to provide cool air indoors.

Efficient thermostat wiring ensures this process runs smoothly, adapting the system perfectly to temperature changes.

Essential Tools and Components

Before starting, ensure you have the following tools and materials on hand:

• A compatible heat pump thermostat
• A small screwdriver set
• Wire strippers
• A voltage tester
• The heat pump’s wiring diagram (often found in the user manual)

Why Proper Wiring Matters

Incorrect heat pump thermostat wiring can lead to decreased system efficiency, fluctuating interior temperatures, and even safety hazards such as electrical malfunctions. Proper wiring ensures optimal performance and avoids costly repairs.

✅ Step-by-Step Instructions for Wiring

To safely and effectively wire your heat pump thermostat, follow these essential steps.

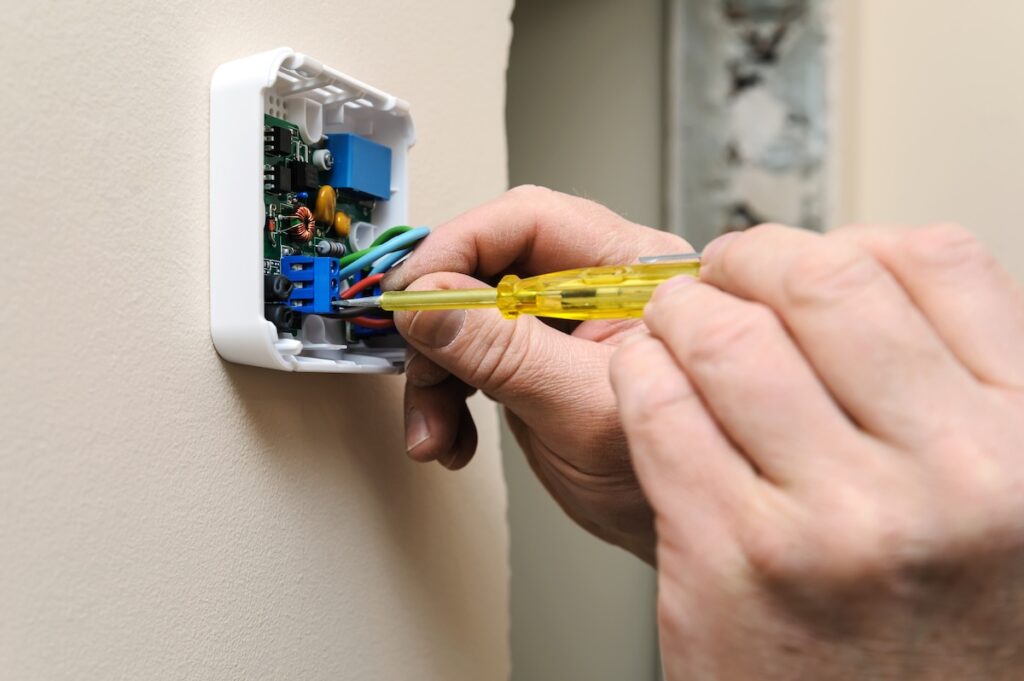

1. Turn Off Power

Safety always comes first. Turn off the power supply to your heat pump and thermostat at the circuit breaker. Use a voltage tester to confirm that the power is completely off before proceeding.

2. Identify the Wires

Remove the old thermostat, if any, and identify the wiring system. Modern heat pump thermostats usually have color-coded wires. Common wires include:

• R (Red): Power supply
• Y (Yellow): Cooling control
• W (White): Heating control
• G (Green): Fan control
• O/B (Orange/Blue): Reversing valve to switch between heating and cooling

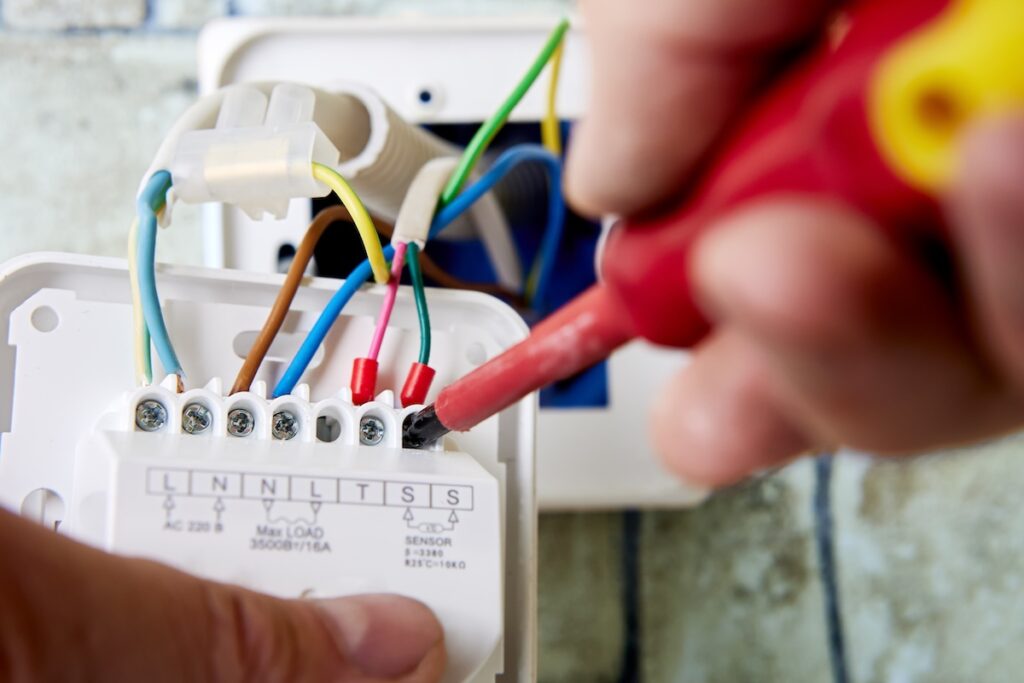

3. Follow the Wiring Diagram

Consult the wiring diagram provided by the thermostat manufacturer. This will guide you in connecting the wires to their corresponding terminals on the thermostat. Insert each wire into the designated terminal and secure them tightly.

4. Test the System

Reconnect the power supply and run a test cycle for heating, cooling, and fan modes. Verify that the system responds accurately to temperature adjustments and ensure no cold air is blowing in heating mode.

Safety Tips for Thermostat Wiring

1. Always work with the power supply off to avoid electrical shocks.
2. Double-check the compatibility of the thermostat with your heat pump model.
3. Avoid modifying wires without confirming their purpose via the diagram.

💡 Enhancing Efficiency with Advanced Features

Modern heat pump thermostats often include advanced features that enhance energy efficiency and comfort.

Smart Thermostats

Smart thermostats allow you to control your system remotely via a smartphone app, letting you adjust settings based on your schedule. Smart features help save energy during unoccupied periods while maintaining comfort when needed.

Zoning Systems

For homes with different heating and cooling needs in various areas, zoning systems can be added. A properly wired heat pump thermostat can integrate with zoning systems to ensure customized temperature control for specific zones.

❌ Common Wiring Mistakes to Avoid

Wiring errors can significantly impact the performance of your system. Below are the top mistakes to watch out for and how to avoid them.

Disconnected or Loose Wires

Ensure all wires are tightly secured in their respective terminals. Loose connections can cause erratic system behavior.

Incorrect Wire Connections

Review your wiring diagram carefully to verify each wire is connected to the correct terminal. Miswiring can damage the thermostat or heat pump.

Overlooking Compatibility

Not all thermostats are compatible with every heat pump. Ensure the thermostat you choose supports your heat pump’s type, including any specific additional features like auxiliary heating.

📋 Troubleshooting Issues

Even with careful wiring, occasional issues can arise. Here are some solutions to common problems.

System Doesn’t Turn On

• Verify that the power supply is restored and the breaker is on.
• Double-check the wire connections for any loose or incorrect placements.

Incorrect Temperature Display

If the thermostat reads an incorrect temperature, ensure it’s installed in a location free from drafts, direct sunlight, or heat sources.
